How to use the DSX application.
Basic User Interface Guide
1. Integration selection
2. Profile selection
3. Access history/ Void orders
4. Link to "help" page
5. Access end of day (close reports)
6. Link to support team

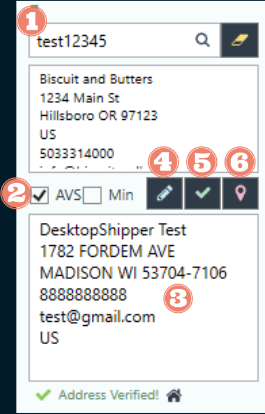

1. Order Lookup
2. Address Verification Services
Note: Checking "Min" will minimalize the address verification process. Only the city, state, and zip will be verified. This impacts the ability to determine domestic VS international.
3. "Send to" address
4. Edit the "send to" address
5. Validate Address
6. Google Maps Lookup
Example shows the address has been successfully verified as a residential address
.
Other potential options:
Address was verified as a commercial address.
Address failed to validate through AVS system.
Note: You may skip address verification while shipping, but it comes with risks. The carrier may not be able to accurately determine surcharges at the time of shipping and you may see additional charges added later.

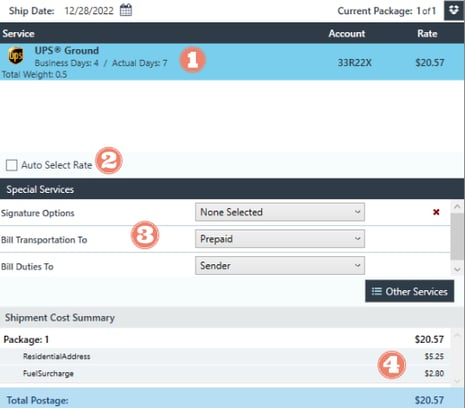

1. Chosen ship method (Example shows order being rated with UPS Ground)
2. If you're rating with a service group and Auto Select Rate is enabled, a ship method will automatically be chosen.
Note: Auto-Select Rate chooses the best ship method from a service group based on the type assigned to the service group. If the type is "Time" it will automatically select the fastest service. If the type is "Rate" it will automatically select the cheapest service.

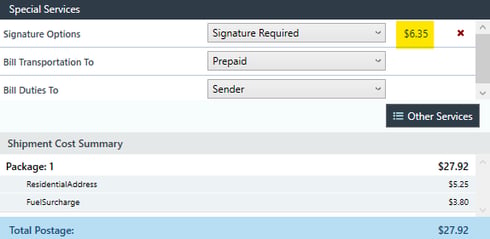

3. Special services that can be attached to the ship method. If chosen, the cost of the service will be applied to the rate below.
4. Total cost of shipment.

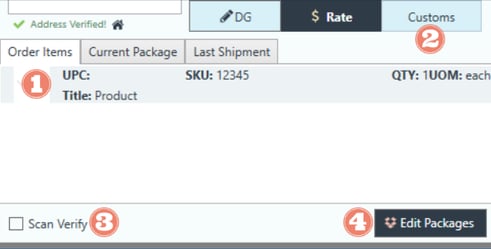

1. Package information, including package contents.
2. Update Customs information (For international orders).
3. Enable/ disable Scan verify.
4. Edit package info and/or package contents.

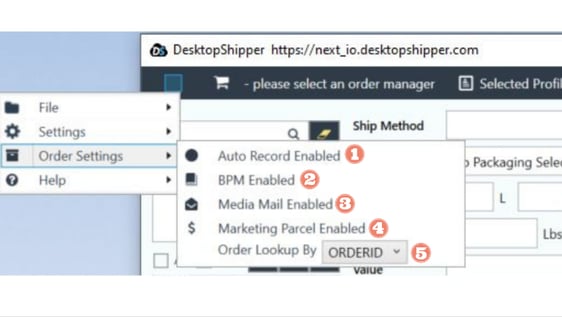

You can click the displayed order settings to enable and disable them on the DSX workstation.
1. Auto-Record
Packages will automatically ship with the designated ship method upon being pulled into DSX.
2. BPM
Must be enabled on the workstation in order to return rates for BPM services.
3. Media Mail
Must be enabled on the workstation in order to return rates for Media Mail services.
4. Marketing Parcel
Enables Marketing parcel flag. Must be enabled in order to return rates for Marketing Parcel rating.
5. Order Lookup By
Change the field DSX is using to pull in orders. The example image shows orders are being pulled in by Order ID (the default for DSX). Other options are Market ID, Reference ID, SKU, UPC, Custom ID, Market Order International ID, Item Alias, and Location. This can be changed to fit unique shipping needs.
Reverse SKU Lookup
To process orders 1 to 1 using reverse SKU lookup, adjust your scan-in order field as seen above in step 5.
SKU/ UPC/ Item Alias/ Location can all be utilized for this method of shipping.
The method will look for the oldest orders with the field variable of your choosing. This will ensure shipments are sent out in the order in which they were placed/ imported.
DSX User Interface Video
